5.5 客户端开发

---

• 5.5.4 C#客户端

  C#客户端同样支持静态模式，Variant模式和脚本模式。这里介绍静态模式和Variant模式。

  以下代码以VS2013控制台项目举例。

  • 静态模式

    1. 首先应该创建C#解决方案和应用项目，确定应用项目的源码目录sdir，执行如下生成命令：

    2.



    java -jar <path to limax.jar> xmlgen –c# –noServiceXML –outputPath sdir example.client.xml


    3. 源码目录里面将看见两个新建目录xmlsrc与xmlgen。xmlgen无需提交到版本控制系统。

    4. 按照生成目录结构，在项目内建立同样的目录结构，然后使用添加现有项操作手工添加所有生成文件，以后的新的生成文件也必须手工添加。

    5. 将C#版本的limax项目添加到解决方案中。

    6. 为应用项目添加引用，引用到limax项目。

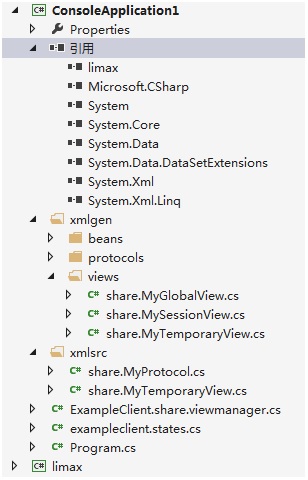

    最后形成大致如下的解决方案树结构。






    class Program
    {
        private const int providerId = 100;
        private static void start()
        {
            Endpoint.openEngine();
            EndpointConfig config = Endpoint.createEndpointConfigBuilder(
                    "127.0.0.1", 10000, LoginConfig.plainLogin("testabc", "123456", "test"))
                .staticViewClasses(example.ExampleClient.share.ViewManager.createInstance(providerId))
                .build();
            Endpoint.start(config, new MyListener());
        }
        private static void stop()
        {
            object obj = new object();
            Action done = () => { lock (obj) { Monitor.Pulse(obj); } };
            lock (obj)
            {
                Endpoint.closeEngine(done);
                Monitor.Wait(obj);
            }
        }
        static void Main(string[] args)
        {
            start();
            Thread.Sleep(2000);
            stop();
        }
    }


    这个主函数代码看起来和java版本无区别。




    class MyListener : EndpointListener
    {
        public MyListener()
        {
        }
        public void onAbort(Transport transport)
        {
            Exception e = transport.getCloseReason();
            Console.WriteLine("onAbort " + transport + " " + e);
        }
        public void onManagerInitialized(Manager manager, Config config)
        {
            Console.WriteLine("onManagerInitialized " + config.GetType().Name + " " + manager);
        }
        public void onManagerUninitialized(Manager manager)
        {
            Console.WriteLine("onManagerUninitialized " + manager);
        }
        public void onTransportAdded(Transport transport)
        {
            Console.WriteLine("onTransportAdded " + transport);
            MySessionView.getInstance().registerListener(e => Console.WriteLine(e));
        }
        public void onTransportRemoved(Transport transport)
        {
            Exception e = transport.getCloseReason();
            Console.WriteLine("onTransportRemoved " + transport + " " + e);
        }
        public void onSocketConnected()
        {
            Console.WriteLine("onSocketConnected");
        }
        public void onKeyExchangeDone()
        {
            Console.WriteLine("onKeyExchangeDone");
        }
        public void onKeepAlived(int ms)
        {
            Console.WriteLine("onKeepAlived " + ms);
        }
        public void onErrorOccured(int source, int code, Exception exception)
        {
            Console.WriteLine("onErrorOccured " + source + " " + code + “ “ + exception);
        }
    }


    除了ViewChangedEvent，内部用属性的方法实现访问，其它方面也无区别。

    MyTemporaryView.java内部实现：

    MyTemporaryView.java




    override protected void onOpen(ICollection<long> sessionids) {
        Console.WriteLine(this + " onOpen " + sessionids);
        registerListener(e => Console.WriteLine(e));
        MySessionView.getInstance().control(99999);
    }
    override protected void onClose() { Console.WriteLine(this + " onClose"); }


    编译运行程序，结果：

    onManagerInitialized DefaultEndpointConfig EndpointManagerImpl

    onSocketConnected

    onKeyExchangeDone

    onTransportAdded limax.net.StateTransportImpl

    [class = MyTemporaryView ProviderId = 100 classindex = 2 instanceindex = 6] onOpen System.Collections.Generic.HashSet`1[System.Int64]

    [class = MyTemporaryView ProviderId = 100 classindex = 2 instanceindex = 6] 61440 _var0 Hello 61440 NEW

    [class = MySessionView ProviderId = 100 classindex = 1] 61440 var0 Hello 61440 NEW

    onKeepAlived 47

    [class = MySessionView ProviderId = 100 classindex = 1] 61440 var0 99999 REPLACE

    [class = MyTemporaryView ProviderId = 100 classindex = 2 instanceindex = 6] 61440 _var0 99999 REPLACE

    onTransportRemoved limax.net.StateTransportImpl System.Exception: channel closed manually

    [class = MyTemporaryView ProviderId = 100 classindex = 2 instanceindex = 6] onClose

    onManagerUninitialized EndpointManagerImpl

    跟前面各版本均一致。

  ---

  • Variant模式

    修改EndpointConfig的定义为：




    EndpointConfig config = Endpoint.createEndpointConfigBuilder(
            "127.0.0.1", 10000, LoginConfig.plainLogin("testabc", "123456", "test"))
        .variantProviderIds(100)
        .build();


    使用variantProviderIds提供PVID参数。

    修改onTransportAdded为：




    private class MyTemporaryViewHandler : TemporaryViewHandler
    {
        private readonly VariantView mySessionView;
        public MyTemporaryViewHandler(VariantView v) { mySessionView = v; }
        public void onOpen(VariantView view, ICollection<long> sessionids)
        {
            Console.WriteLine(view + " onOpen " + sessionids);
            view.registerListener(e => Console.WriteLine(e));
            Variant param = Variant.createStruct();
            param.setValue("var0", 99999);
            mySessionView.sendControl("control", param);
        }
        public void onClose(VariantView view) { Console.WriteLine(view + " onClose"); }
        public void onAttach(VariantView view, long sessionid) { }
        public void onDetach(VariantView view, long sessionid, int reason) { }
    }

    public void onTransportAdded(Transport transport)
    {
        Console.WriteLine("onTransportAdded " + transport);
        VariantManager manager = VariantManager.getInstance((EndpointManager)transport.getManager(), providerId);
        VariantView mySessionView = manager.getSessionOrGlobalView("share.MySessionView");
        mySessionView.registerListener(e => Console.WriteLine(e));
        manager.setTemporaryViewHandler("share.MyTemporaryView", new MyTemporaryViewHandler(mySessionView));
    }


    和Java版本比起来，除了C#不支持通过匿名类直接创建对象，不得不定义MyTemporaryViewHandler外，没有任何区别。

    编译运行程序，结果：

    onManagerInitialized DefaultEndpointConfig EndpointManagerImpl

    onSocketConnected

    onKeyExchangeDone

    onTransportAdded limax.net.StateTransportImpl

    [view = share.MyTemporaryView ProviderId = 100 classindex = 2 instanceindex = 8] onOpen System.Collections.Generic.HashSet`1[System.Int64]

    [view = share.MyTemporaryView ProviderId = 100 classindex = 2 instanceindex = 8] 61440 _var0 Hello 61440 NEW

    [view = share.MySessionView ProviderId = 100 classindex = 1] 61440 var0 Hello 61440 NEW

    onKeepAlived 38

    [view = share.MySessionView ProviderId = 100 classindex = 1] 61440 var0 99999 REPLACE

    [view = share.MyTemporaryView ProviderId = 100 classindex = 2 instanceindex = 8] 61440 _var0 99999 REPLACE

    onTransportRemoved limax.net.StateTransportImpl System.Exception: channel closed manually

    [view = share.MyTemporaryView ProviderId = 100 classindex = 2 instanceindex = 8] onClose

    onManagerUninitialized EndpointManagerImpl

    跟前面各版本均一致。

  ---

  • C#版本总结

    C#版本客户端除了少数语言特性带来的差异外，使用方法与注意事项均与Java版本一致。框架提供的类库结构，直接参考javadoc文档即可。

    C#异常规范不够完备，处理各种EndpointListener消息时，建议不要抛出任何异常。

    框架使用了.NET3.5的C#语言特性，由于网络认证过程使用了Diffie-Hellman协议作密钥交换，需要BigInteger支持。如果只能使用.NET3.5，就应该另找一个.NET4.0以上的BigInteger库引用进来。

    另外，limax.util包下提供了两个辅助方法，runOnUiThread与uiThreadSchedule，便于应用在自己的UI线程中调度View消息通告。创建配置的时候 .executor(r => runOnUiThread)，然后在自己的UI线程空闲时调用uiThreadSchedule即可。
